The Trent Severn Waterway

Brief History of The Trent-Severn Waterway
The start to finish time line spans eighty-seven years with the systems construction starting in 1833 at Bobcaygeon and finishing in 1920 at Port Severn, three hundred and eighty-seven kilometers from Lake Ontario.
The Navigation channel runs a depth of six feet from start to finish. The locks vary in raising the water level some exceptions are; flight locks, the Big Chute Marine Railway with a lift of eighteen meters (58 feet), the Kirkfield Lift Lock with an average lift of fifteen meters (49 feet) )and the Peterborough Lift Lock (finished in 1904) with a lift of twenty meters (65 feet).
Peaking at Balsam Lake at 180 meters (600 feet) above Lake Ontario and 80 meters (250 feet) above Lake Huron’s, Georgian Bay.
Standard lock dimensions are one hundred and twenty feet long by thirty-two feet wide. The two exceptions are the lock 44, the Big Chute Marine Railway at one hundred feet long by twenty-four feet wide and lock 45 at Port Severn is only eight-four feet long and twenty-three feet wide setting the limit if you wish to traverse The Trent Severn Waterway from one end to the other.
Two major upgrades were at Big Chute in 1960 and combining two locks at Burleigh Falls in 1968 eliminating lock 29.
• The Trent Severn Waterway is Central Ontario's 387 kilometers of waterway utilizing 41 locks, a marine railway and 2 hydraulic lift locks. The highest point, Balsam Lake is 180 meters (590 feet) above Lake Ontario and 80 meters (260 feet) above Georgian Bay.
• Navigation here is easy, all the key data is on one page. A click to the printable map or business directory or towns you pass by with quick links to their street map, grocery shopping, LCBO and region.
• Enjoy relaxing, activities or the sights of Central Ontario including the Peterborough Lift Lock or the Big Chute Marine Railway.
• We use 387 km instead of 386 km because that is what we get things to add up to.
• Balsam Lake is the highest point in the system, not Rosedale or Kirkfield. Kirkfield is 14.9 m below Balsam and Rosedale 1.2 m below.
• The Kirkfield Lift Lock Chambers rise to one foot below Balsam Lake, the system works when Balsam fills this area in the chamber increasing the weight, allowing it to descend so the opposite chamber to can rise. The chamber coming down must always have more water (weight) for the design to function.
• There is no lock 29 as two locks were replaced by one at Burleigh Falls.
• Purdey's Mills aka Lindsay aka City of Kawartha Lakes, is a side branch of The Trent-Severn Waterway accessing Lake Scugog.

Trent-Severn Waterway over the years has been called simply trent severn or severn travel or trent severn canal or trent severn water or trent waterway or severn canal or trent canal and all names aptly describe The Trent Severn Waterway. Here at our site, TheTrentSevernWaterway.com, we source the single details that you will need to use this resource running through Central Ontario, Canada.

We employ and are in the midst of employing some of the following web sites to help those seeking The Trent Severn Waterway to do so. These websites are: thetrentsevernwaterway.com, trentcanal.com, trentcottages.com, trenthouseboatrentals.com, trentwaterway.com, severnwaterway.com and ontariowaterway.com . Hopefully this displays our committment to this great resource and helps you along the many pathways, onshore and offshore, of The Trent Severn Waterway! With thousands of features the must see parts are the Peterborough Hydraulic Lift lock, the world's highest hydraulic lift lock, the Kirkfield Lift Lock and the Big Chute Marine Railway, a portage taking you and your craft from The Trent Severn Waterway over to Georgian Bay, part of Lake Huron.

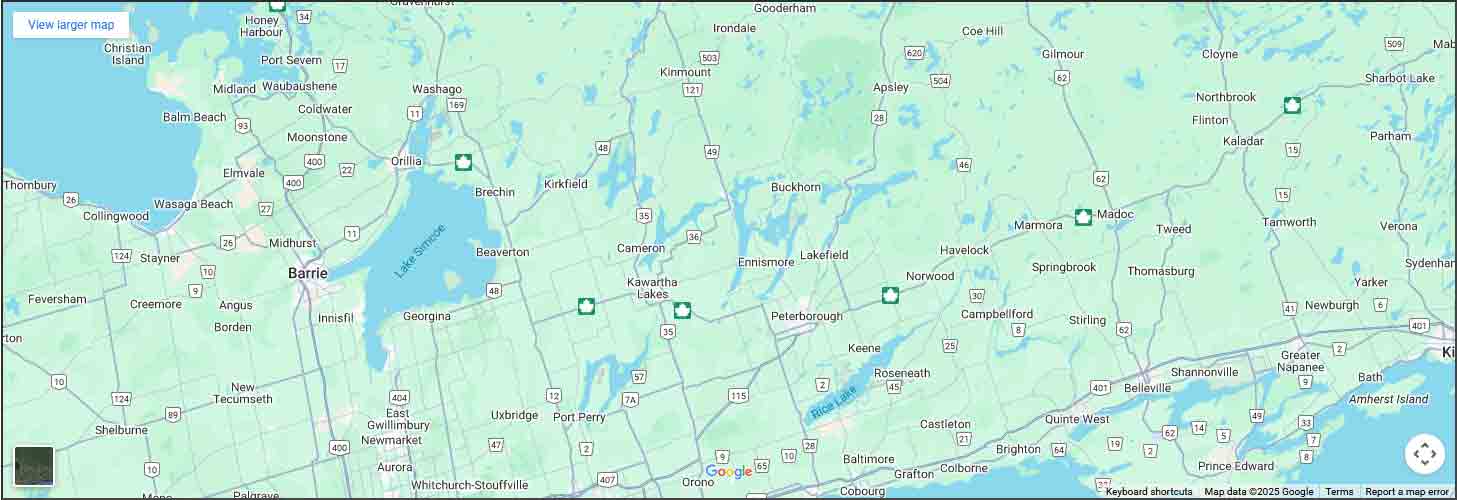

Trent Severn printable map, click here or jump to: Lock/Station/GPS & Links or Lock/Region/Distance/Chart or Return to Top
